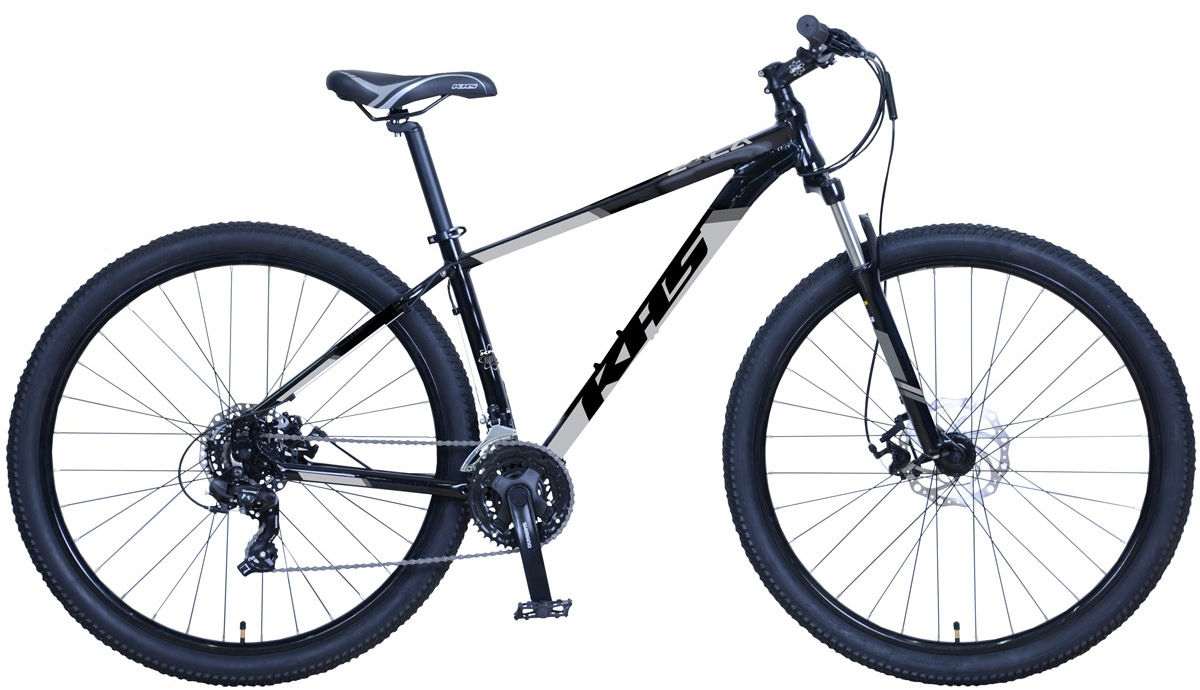

KHS Zaca
This item is currently not available.
Details
Mountain bikes are just that, a bike to take to off road into the mountains. These bikes typically have suspension forks and/or rear suspension. KHS makes Mountain bikes that give you a comfortable fit to help you be able to get and ride all day long.
| X-Small/13 | Small/15 | Medium/17 | Large/19 | X-Large/21 | |
|---|---|---|---|---|---|
| s/t c-t | 330/13 | 381/15 | 432/17 | 483/19 | 533/21 |
| h/t° | 67° | 67.5° | 68° | 67.5° | 67.5° |
| s/t° | 73° | 73° | 73.6° | 73.6° | 73.6° |
| t/t effectv | 580/22.8 | 591/23.3 | 612/24.1 | 635/25 | 636/25 |
| c/s | 430/16.9 | 430/16.9 | 435/17.1 | 435/17.1 | 435/17.1 |
| BB Height | 295/11.6 | 295/11.6 | 312/12.3 | 312/12.3 | 312/12.3 |
| s.o. | 708/27.9 | 734/28.9 | 779/30.7 | 823/32.4 | 844/33.2 |
| h/t L | 90/3.5 | 90/3.5 | 100/3.9 | 115/4.5 | 130/5.1 |
| Stack | 590/23.2 | 590/23.2 | 596/23.5 | 610/24 | 624/24.6 |
| Reach | 400/15.7 | 413/16.3 | 430/16.9 | 453/17.8 | 472/18.6 |
Specs
| Frame | 6061 Aluminum w/Custom Formed T/T & D/T, w/Replaceable Derailleur Hanger, XS-S:27.5”, M-XL:29”, Internal Cable Routing |
|---|---|
| Fork | Zoom 565D, 80mm, XS-S:27.5”, M-XL:29” |
| Rims | Aluminum Disc Double Wall, XS-S: 27.5x32H, M-XL: 29x32H |
| Hubs |
Front: Aluminum Disc w/CNC Rotor Flange, QR Rear: Aluminum Disc w/CNC Rotor Flange, QR, Cassette |
| Spokes | 14G Black 32x32 |
| Tires | Kenda Saber, XS-S: 27.5x2.2, M-XL: 29x2.2'' |
| Bottom Bracket | Cartridge Bearing |
| Crankset | Samox Forged, 30T Narrow/Wide C/R, XS-S:170, M-XL:175 |
| Shifters | S-Ride, SL-M300C, 8-Speed |
| Rear Derailleur | S-Ride, RD-M300C, 8-Speed |
| Cassette/Freewheel | S-Ride CS-M20008 11-42T, 8-Speed |
| Chain | KMC Z8.3 |
| Brakes | Radius Cable Disc BR-CX7, 180/160mm Rotors w/ABS System |
| Brake Levers | Aluminum Linear Pull, 2.5F |
| Handlebars | Aluminum Riser, 31.8, 720x20mm, Ladies:680mm |
| Tape/Grips | KHS Sport |
| Stem | Aluminum Threadless 4-bolt, 6-degree, 31.8, XS-S:60mm, M-L:75mm, XL:90mm |
| Headset | Threadless Zero Stack, 1-1/8'' |
| Seatpost | KHS Aluminum Micro-Adjust 31.6mm |
| Saddle | KHS Sport |
| Pedals | Resin ATB Platform w/DU Bearings |
* Subject to change without notice.
