KHS Wren Fat Bike Suspension Fork

KHS Wren Fat Bike Suspension Fork
Please select options
Sorry, this item is currently not available. Please check back.


Now in stock at Trailhead the WREN Fat Bike Suspension Fork with
TwinAir, Keyed Stanchions and Carbon Bash Guards!

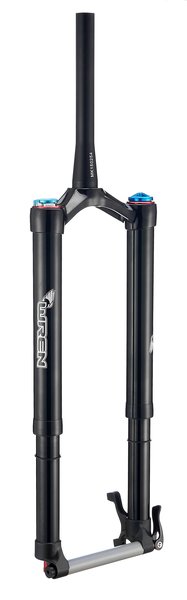

The Wren Aluminum Fat Bike Suspension Fork continues to set the standard with the addition of Keyed Stanchions. Similar to the design of a motorcycle fork, the keyed stanchions prevent stanchion twist and keep you running true. The inverted design puts the 36mm stanchions on the bottom reducing the lower mass of the fork making it more responsive to the trail. The beefed up crown and 43mm uppers provide the strength and torsional rigidity. All Wren suspension forks have fully adjustable rebound and compression on the oil side. In addition, rider accessible dial to make compression adjustments on the fly including lockout. The new TwinAir air spring allows for quick and easy pressure changes to keep you fine tuned for the trail. And all TwinAir forks now come with carbon bash guards and 2 travel clips! Attention snow riders - this fork works in the cold. Get your freeze on!

WSF150-110ATK specs are:

Hub Spacing: 150mm

Tire/Wheel Size*: = 26" x 5.0", =27.5" x 4.0", =29" x 3.0"

AC Length: 530mm

Travel: 110mm (adjustable to 100mm, 90mm or 80mm)

Steerer: Tapered - 1.125" ~ 1.5"

Crown: AL6066T6 forged

Stanchions: AL7050 hard anodized, 36mm

Uppers: AL7050 hard anodized, 43mm

Dropouts: Forged

Axle: QR15 included

Brake: Post mount

Offset: 45mm

Weight: 2154 grams / 4.7 pounds

*Travel might be limited due to size of wheel/tire combination
